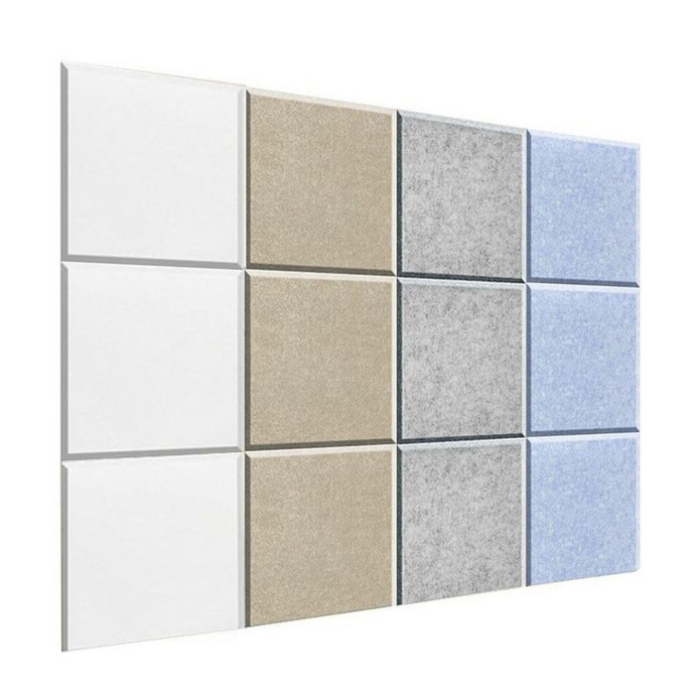

Nine-grid panels
Discover the endless design flexibility of WAYSON polyester fiber acoustic panels; a lightweight, semi-rigid acoustic panel. Available in solid colors, WAYSON polyester fiber acoustic panels can be used in a wide range of space designs and interior solutions.
WAYSON polyester fiber acoustic panels are more than just traditional interior acoustic panels; they can also serve as the basis for creative solutions that focus on design and aesthetics.
WAYSON polyester fiber acoustic panels are made of 100% polyester. Containing at least 100% recycled materials; WAYSON polyester fiber acoustic panels are completely safe, non-toxic, non-allergenic and non-irritating.
We can produce 9 mm acoustic panels up to 6000t in 2018.
Send Inquiry
| Election： | PET acoustic panel |
| No.: | 10 |
| Name: | 100% polyester fiber acoustic felt panel |
| Material: | 100% polyester fiber. It contains 100% recycled fabric |
| Surface Type: | Flat and smooth |
| Technics: | No chemical, Eco-friendly |
| Feature: | Soundabsorbing; Safe, non-toxic, non-irritant and non-allergenic; Durable; Customize |
| Density: | 1220g/㎡ |
| Color: | 47colors IN STOCK. Customizable |
| Size: | 2440*1220*9mm（+/-3mm to 5mm)，Customize |
| Item Weight: | 7.93 pounds/piece, 3.6kg/piece |
| Style: | Morden |
| Orignal: | Nangong, Hebei, China |
| Brand: | WAYSON |
| Application: | Office Building |
| Product Specifications |
| Product Name: | Polyester fiber acoustic panel |
| Composition: | 100% Polyester Fiber (PET) |
| Panel Dimensions : | 2440*1220mm or other Custom size |
| Thickness : | (+/– 10%) 9mm and 12mm are in stock or 3mm.5mm.15mm.18mm.24mm.30mm.48mm |
| Weight: | 1100g/sqm(220kg/m3) density for 5mm PET panel 1600g/sqm(177kg/m3). 1900g/sqm(211kg/m3) for 9mm in stock. 2400g/sqm(200kg/m3) for 12mm in stock. 2400g/sqm(160kg/m3) for 15mm polyester fiber acoustic panel 3200g/sqm(160kg/m3) for 20mm polyester fiber acoustic panel 3500g/sqm(145kg/m3) for 24mm polyester fiber acoustic panel 7000g/sqm(145kg/m3) for 48mm polyester fiber acoustic panel |
| Test Report | EN13501-12007 Class B ASTM E84 Class A ASTM E84 Class C BS 476 Part 7 Class 1Y Fire Rated BS EN 717-1 E0 Formaldehyde-free Environmental Test NRC EN 13964;2004+A1:2006 Acoustic Test 24MM EN 12667-2001 Thermal Conductivity and Thermal Resistance 24MM NRC EN ISO 354-2003 |
| Environmental | WAYSON is committed to best practice through our ISO 9001 and ISO 14001 accredited Quality and Environmental Management Systems. WAYSON products contain a minimum of 100% previously recycled polyester fiber (from PET bottleflake), ensuring comparatively low embodied energy. Off-cuts and manufacturing waste are re-used or recycled wherever possible. Uncontaminated WAYSON polyester fiber panel can be recycled. WAYSON polyester fiber acoustic panel is manufactured from 100% polyester fibers and does not contain chemical binders, including formaldehyde. WAYSON polyester fibers support safer indoor air quality and will not become a potential airborne pollutant. |
| Service | 1-year warranty |
| Color Options | 47colors IN STOCK. Customizable |
